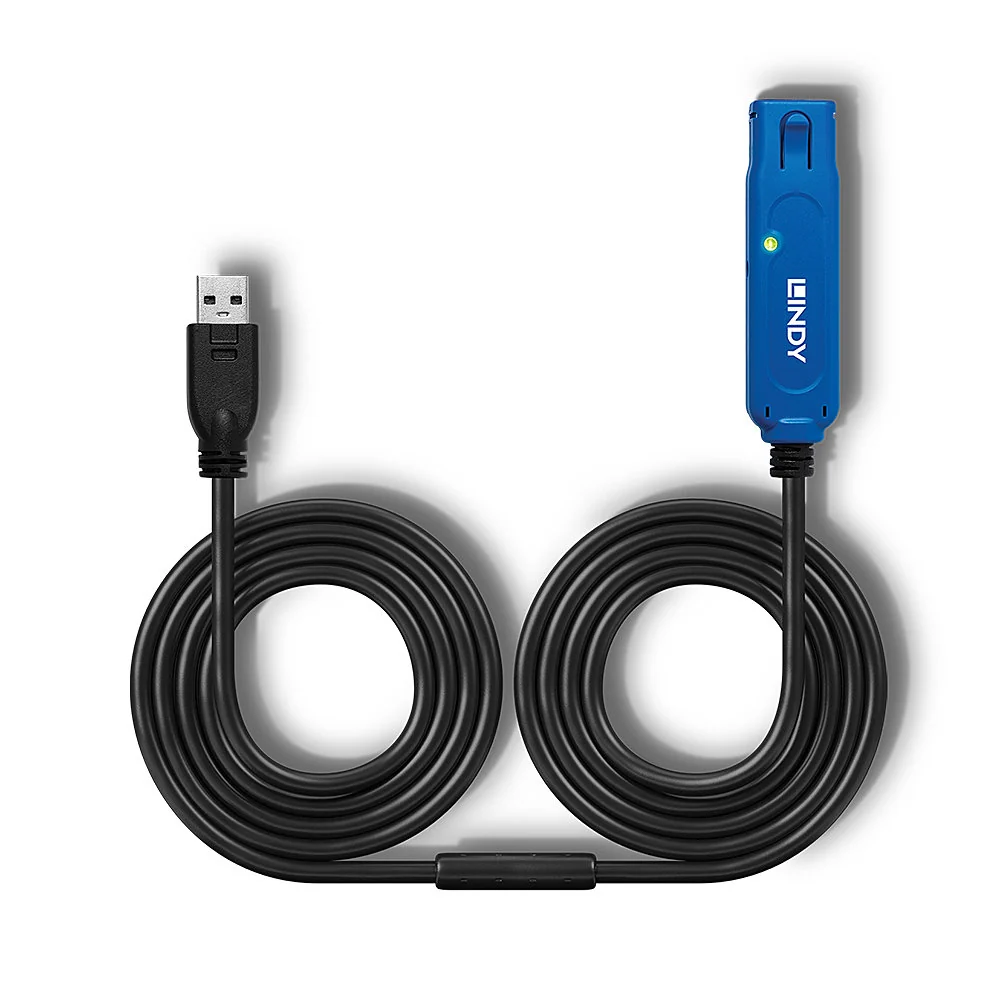

The Lindy USB 3.0 Active Extension Pro is a high-performance solution for extending USB 3.0 signals over long distances. With support for data transfer speeds of up to 5Gbps, this modular system is ideal for professional environments, ensuring reliable signal integrity for AV setups, IT infrastructure, and other demanding applications. Available in lengths of 8m, 10m, 15m, 20m, and 30m, this system provides unparalleled flexibility and performance.

Key Features

• Long-Distance USB Signal Extension: Extend USB 3.0 signals up to 40m when combined with additional repeaters and hubs.
• High Data Transfer Speeds: Supports USB 3.0 transfer rates of up to 5Gbps for seamless connectivity.

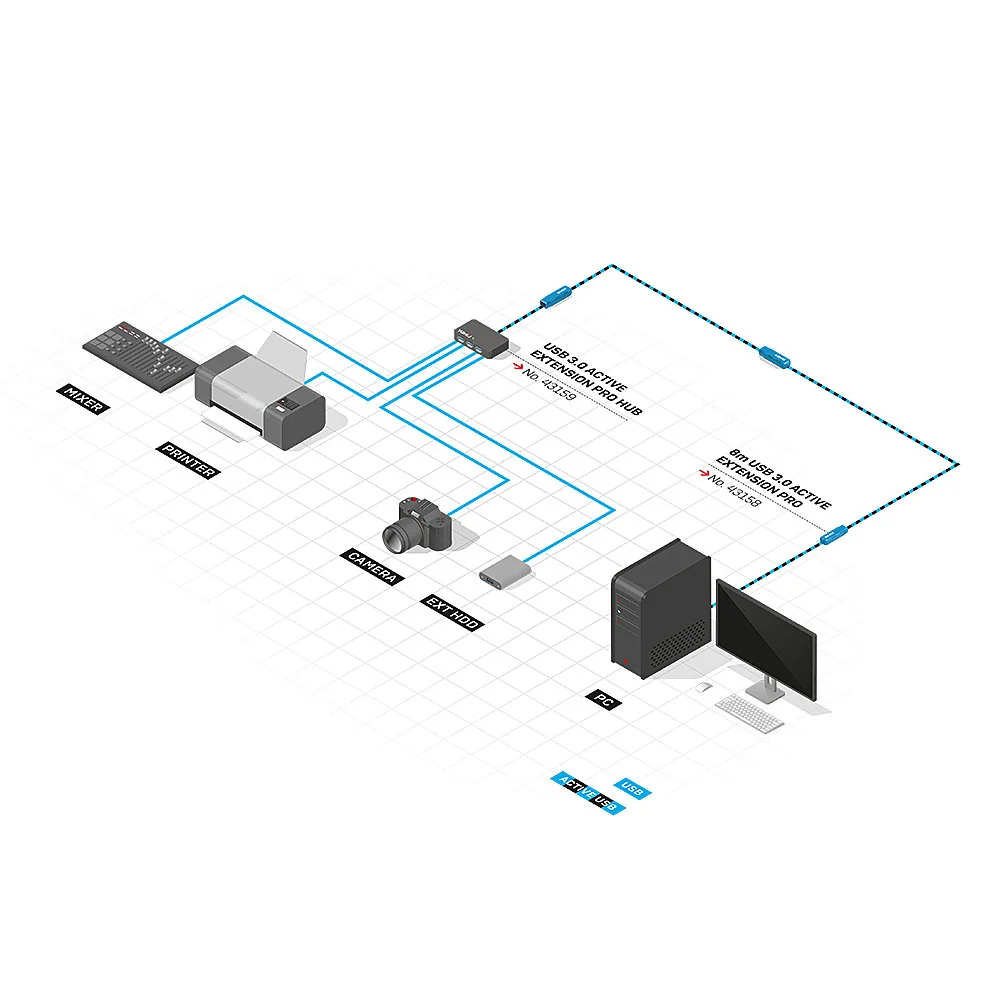

• Modular Design: Combine cables, repeaters, and hubs for a tailored extension system. Each cable length provides unique configurations for standalone or modular use.
• Industry-Proven Reliability: Active technology and robust shielding ensure stable performance even in demanding environments.
• Wide Compatibility: Perfect for connecting USB peripherals like keyboards, mice, cameras, or storage devices in professional setups.
• Durable Construction: Built with quality materials, including AL Mylar and braid shielding, to maintain integrity over long distances.

Specifications

Supported Bandwidth	5Gbps
Nominal Attenuation	0.064 MHz: -0.08 dB 400 MHz: -5.8 dB (Detailed attenuation values are available upon request)
Length Options	8m (26.25ft), 10m (32.81ft), 15m (49.21ft), 20m (65.62ft), 30m (98.42ft)
Connectors	Connector A: USB Type A (Male) Connector B: USB Type A (Female) Housing Material: Plastic Connector Plating: Front Nickel Pin Material: Brass with Gold Flash
Cable Construction	Standard: USB 3.0 Jacket Diameter: 7mm (+/- 0.15mm) Conductor Material: Tinned Copper Shielding: AL Mylar and braid Colour: Black
Operating Conditions	Operating Temp: 0°C to 50°C (32°F to 122°F) Storage Temp: -20°C to 60°C (-4°F to 140°F) Humidity: 0-90% RH (non-condensing)
Packaging Dimensions	8m: 240×200×70mm (9.45×7.87×2.76in) 10m: 240×200×70mm (9.45×7.87×2.76in) 15m: 280×180×10mm (11.02×7.09×0.39in) 20m: 230×198×120mm (9.06×7.8×4.72in) 30m: 230×198×120mm (9.06×7.8×4.72in)
Gross Weight	8m: 0.9kg (1.98lb) 10m: 0.75kg (1.65lb) 15m: 1.351kg (2.98lb) 20m: 1.82kg (4.01lb) 30m: 3.21kg (7.05lb)
Net Weight	8m: 0.75kg (1.65lb) 10m: 0.6kg (1.32lb) 15m: 1kg (2.2lb) 20m: 1.6kg (3.53lb) 30m: 2.8kg (6.17lb)
Compliance	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Warranty	2 Years

Note: Ensure that the extension hub is always the last segment in modular systems to maintain reliable signal performance.
